Brand Name : GESTER
Model Number : GT-I14
Certification : CE,ISO
Place of Origin : CHINA
MOQ : 1 set
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 200 sets/month
Delivery Time : 10-30 days
Packaging Details : wooden packaging
Product name : IEC 62133-2 Lab Mechanical Acceleration Impact Tester For Electronic Products
Keywords : Acceleration Impact Tester
Warranty : 1 Year
Feature : reliable, professiona
Price : factory price
Weight : 650 kg
Dimension : 600*550*1950mm
Input Form : voltage, charge
Coupling mode : AC, DC, ICP
Pulse Duration : 0.5---7ms

Key Specification
| Working Platform | 200 mm×200 mm |
| Maximum Load | 10 kg |
| Peak Acceleration | 20---1500 G |
| Pulse Duration | 0.5---7ms |
| Dimension | (L×W×H) 600×550×1950mm |
| Weight | 650 kg |
| Electrical Requirements | AC220V±10% 50Hz, 1KVA & 0.5—0.7MPa |
| Measuring System | |
| Input Channels | 2 |
| Sampling Frequency | 192KHz |
| Input Form | voltage, charge |
| Coupling mode | AC, DC, ICP |
| Pulse Duration | 50-1ms |
| Voltage Range | -10V--+10V |
| Impact Waveform | half sine |
| Operating system | Microsoft Windows2000/XP |
| Communication interface | USB2.0 |
| System Acceleration Sensor | |
| Output method | Charge type |
| Sensitivity | 3.93Pc/g |
| Frequency range | 0.5---12KHz |
| Acceleration range | ±2500G |
| Working environment | -40~+160℃ |

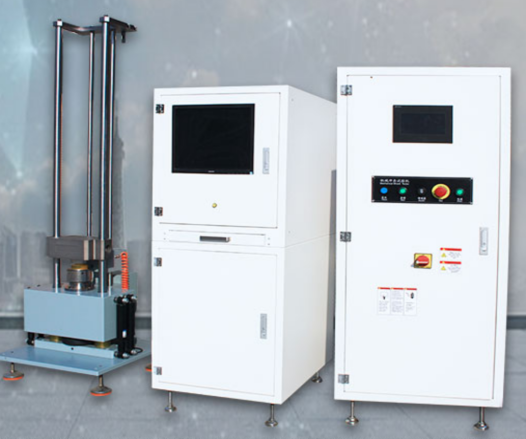

Product Image

|
|
IEC 62133-2 Lab Mechanical Acceleration Tester For Electronic Products Images |
